Q-Chem

Overview

Q-Chem is a comprehensive ab initio quantum chemistry program. Q-Chem’s capabilities facilitate applications in pharmaceuticals, materials science, biochemistry and other fields.

Q-Chem 6.3 Shared Memory and GPU Versions are available.

Restrictions on use

Q-Chem 6.3 is limited to one research group.

License Terms & Conditions of Q-Chem can be seen here: https://q-chem.com/purchase/license/

To get access to Q-Chem on the CSF3, you must request it via our help form and confirm that you have read the above License Terms & Conditions and your usage will comply with the Terms & Conditions of the License. On getting your request along with your confirmation and after approval of the license holder, you will be added to a secondary unix group which will enable your access to Q-Chem software in CSF3.

Set up procedure

To use Q-Chem load one of the following modulefiles:

module load apps/binapps/qchem/6.3
module load apps/binapps/qchem/6.3_gpu

You do not need to load CUDA modules separately.

Running the application

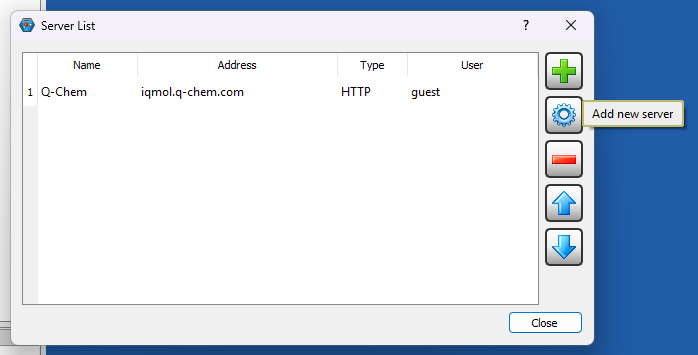

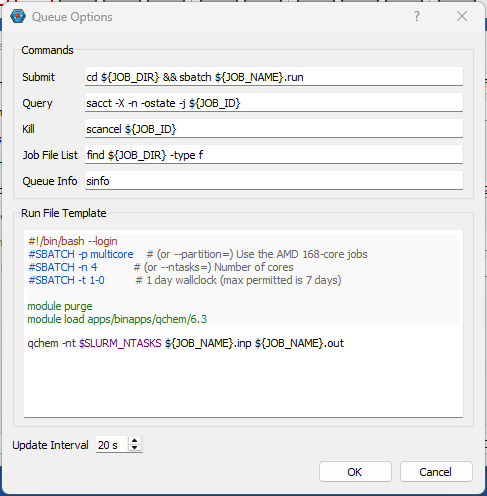

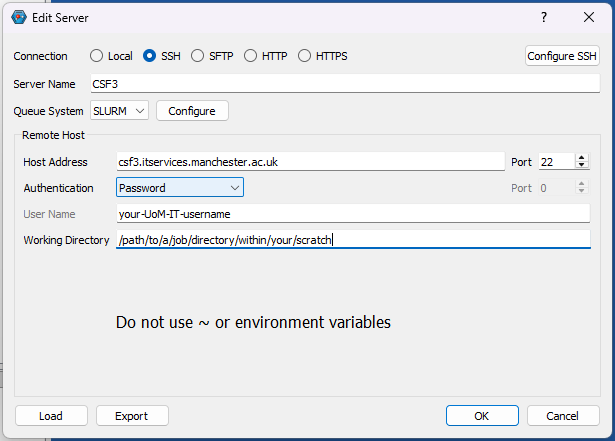

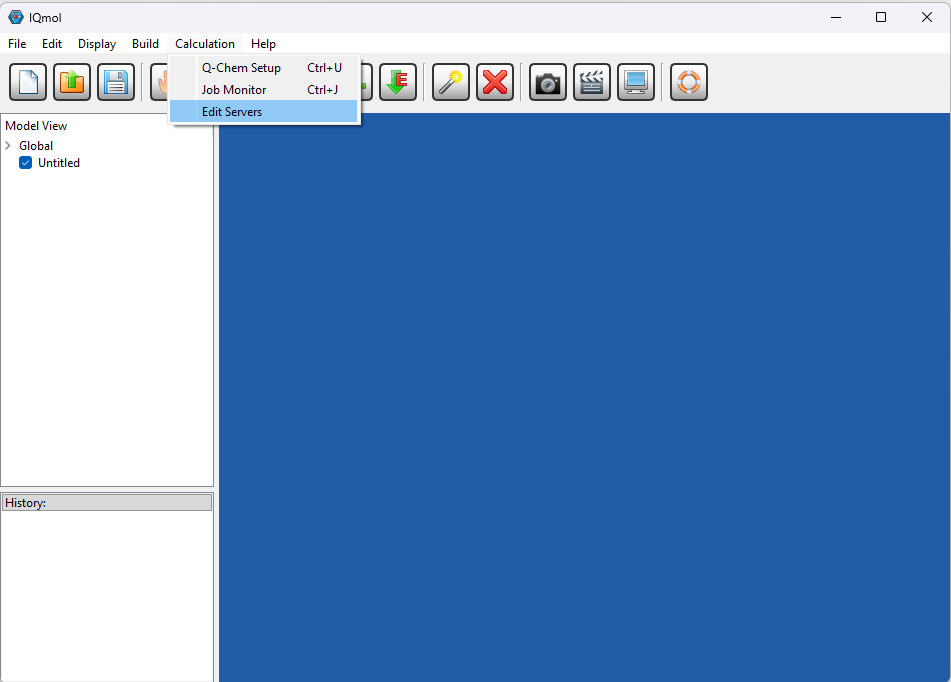

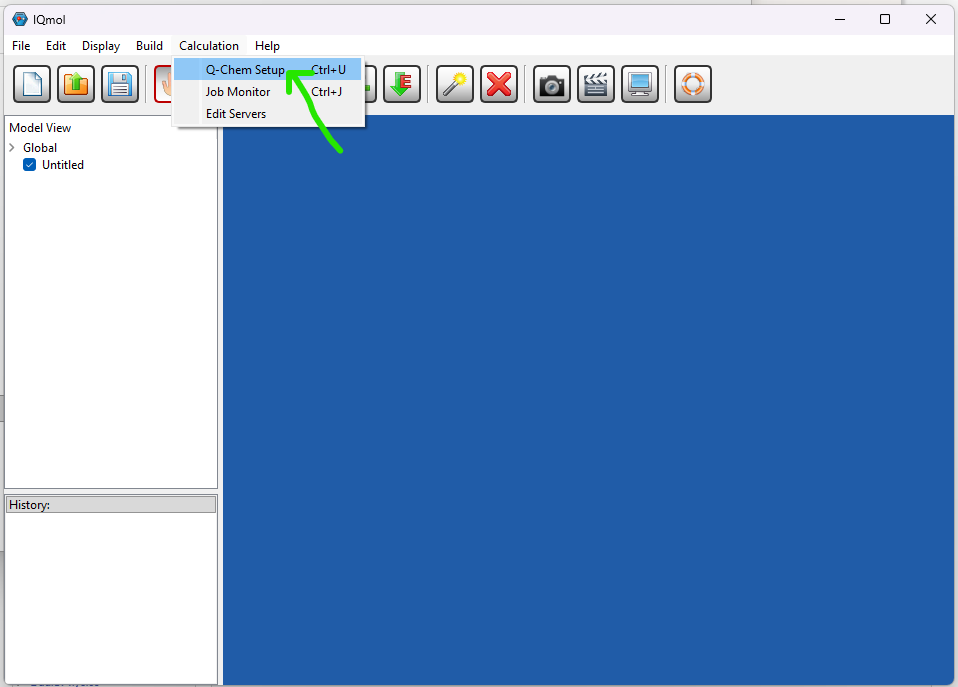

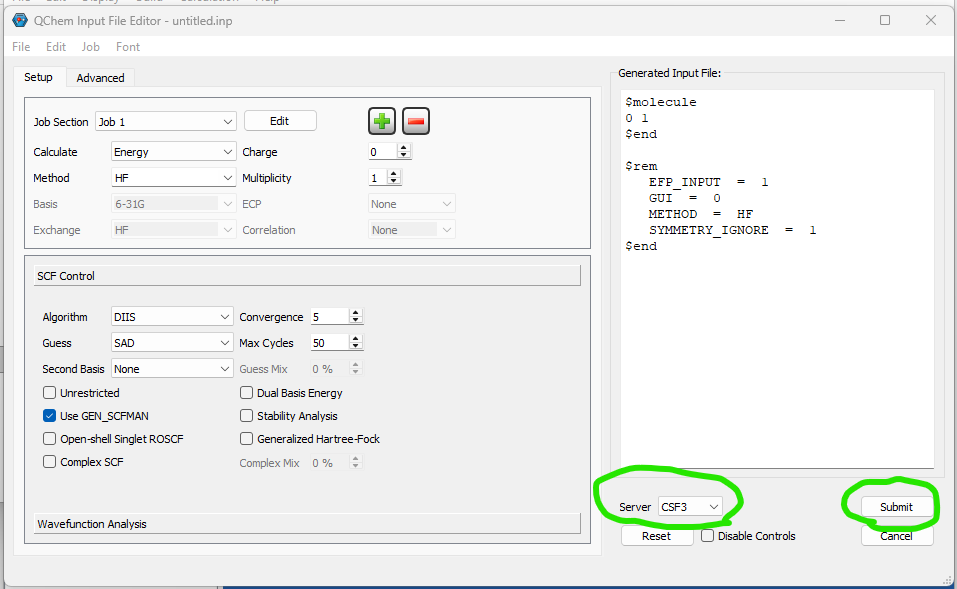

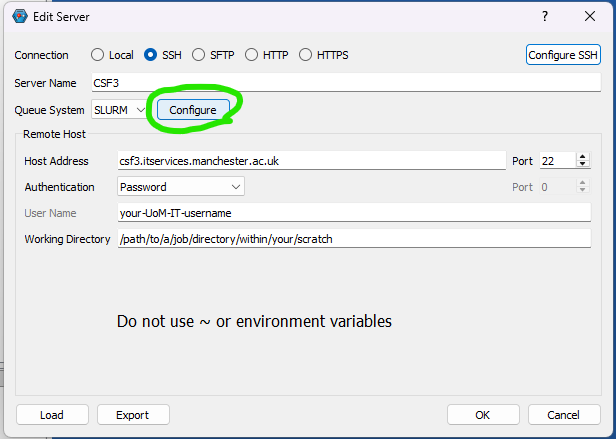

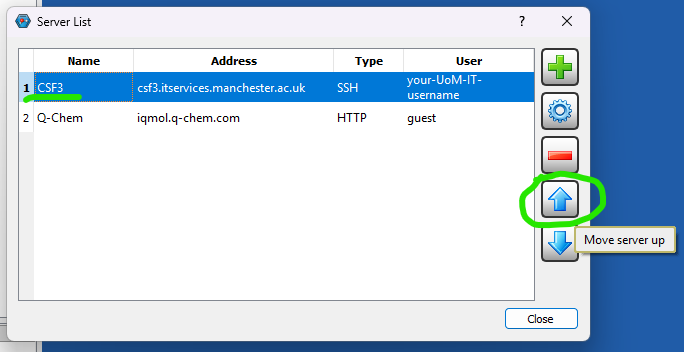

Please note that IQmol is not available in CSF3. If you need to use it for creating your input files, you can download and install Iqmol in your Laptop/Desktop, it is available for free. For Windows there is a portable (ZIP) version available which can run without installing. After preparing input files in your Laptop/Desktop using IQmol, you can then upload the input file to CSF3 and submit it to the batch system using a suitable jobscript. Example jobscripts are given below.

A scratch directory named “qchemscratch” will be created within the job directory by Q-Chem when the job runs. It is used for storing temporary files and for restarting jobs and is emptied by Q-Chem on completion of the job.

Serial job

An example batch submission script that will read a file named input.in from the current directory and write the output in input.out:

#!/bin/bash --login
#SBATCH -p serial       # (or --partition=) Use the nodes dedicated to 1-core jobs
#SBATCH -t 1-0          # 1 day wallclock (max permitted is 7 days)

module purge
module load apps/binapps/qchem/6.3

qchem input.in input.out

Submit with the command: sbatch scriptname where scriptname is the name of your jobscript.

SMP Parallel job – 2 to 168 cores

An example batch submission script that will read a file named input.in from the current directory and write the output in input.out:

#!/bin/bash --login
#SBATCH -p multicore    # (or --partition=) Use the AMD 168-core jobs
#SBATCH -n 4            # (or --ntasks=) Number of cores
#SBATCH -t 1-0          # 1 day wallclock (max permitted is 7 days)

module purge
module load apps/binapps/qchem/6.3

qchem -nt $SLURM_NTASKS input.in input.out

Submit with the command sbatch scriptname where scriptname is the name of your jobscript.

GPU job

An example batch submission script that will read a file named input.in from the current directory and write the output in input.out:

#!/bin/bash --login
#SBATCH -p gpuL         # L40S GPUs. Other GPUs available: gpuA (A100-80GB)
#SBATCH -G 1            # (or --gpus=) Number of GPUs
#SBATCH -n 4            # (or --ntasks=) Number of cores. Up to 12 CPU cores per GPU permitted for L40S.
#SBATCH -t 1-0          # 1 day wallclock (max permitted is 7 days)

module purge
module load apps/binapps/qchem/6.3_gpu

qchem -gpu -nt $SLURM_NTASKS input.in input.out

Submit with the command sbatch scriptname where scriptname is the name of your jobscript.

Further info

• Q-Chem website
• Q-Chem 6.3 Manual
• IQmol website
• IQmol User Guide

Updates

None at this time.
